Slat-type Solar Module Production System

Flexible production system for solar cells

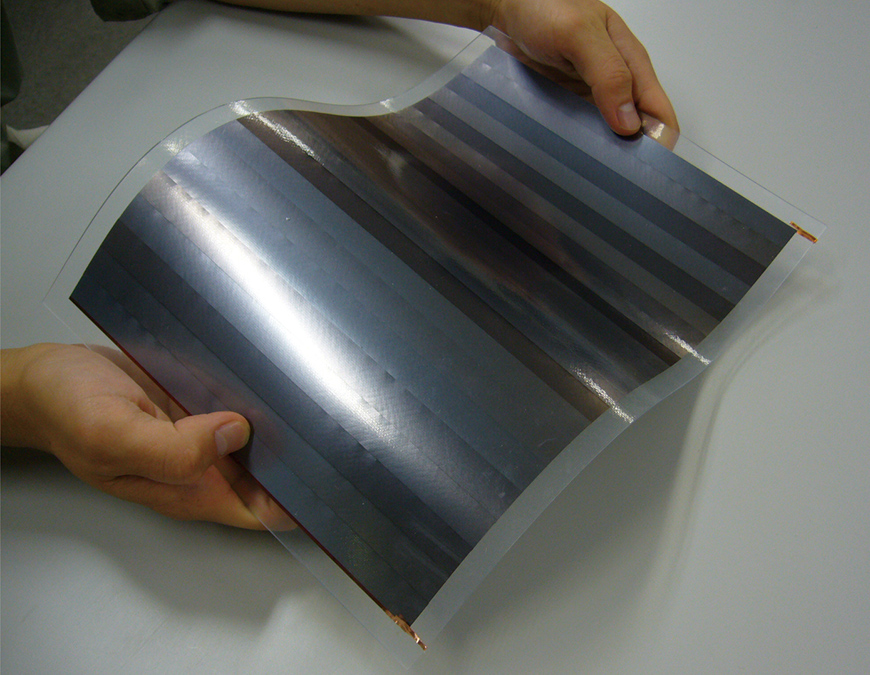

Photo of actual slat-type solar module

We offer manufacturing equipment for solar module with a completely new structure
This concept was selected for NEDO's project 2007–2008

Features

Lightweight: Approx. 3kg/m2 << Glass substrate thin film (approx. 10kg/m2)
Flexible: Can be used virtually anywhere
Low-cost: Roll-to-roll
Requires no laser scribe
Individual cell inspection improves yield

Overall plan for manufacturing line (Fig. 1)

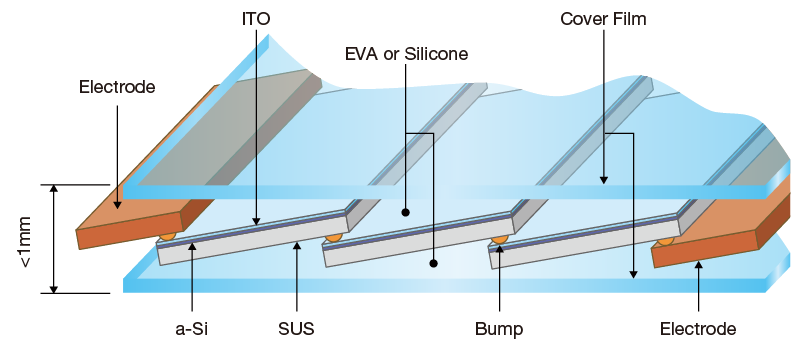

1. Slat-type solar module

Slat-type solar module

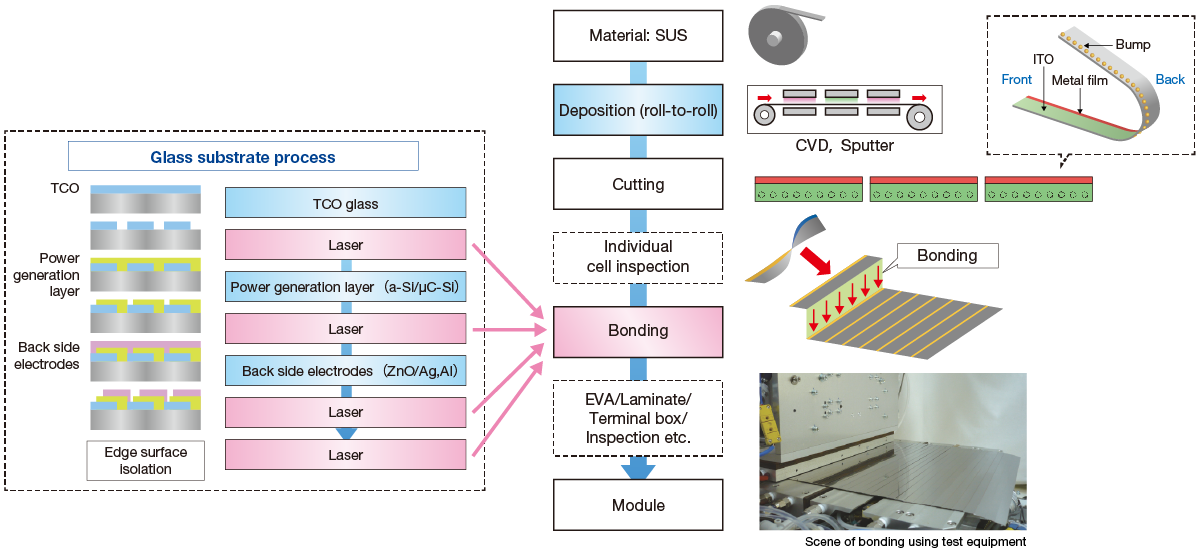

2. Production process for slat-type solar module

Production process for slat-type solar module

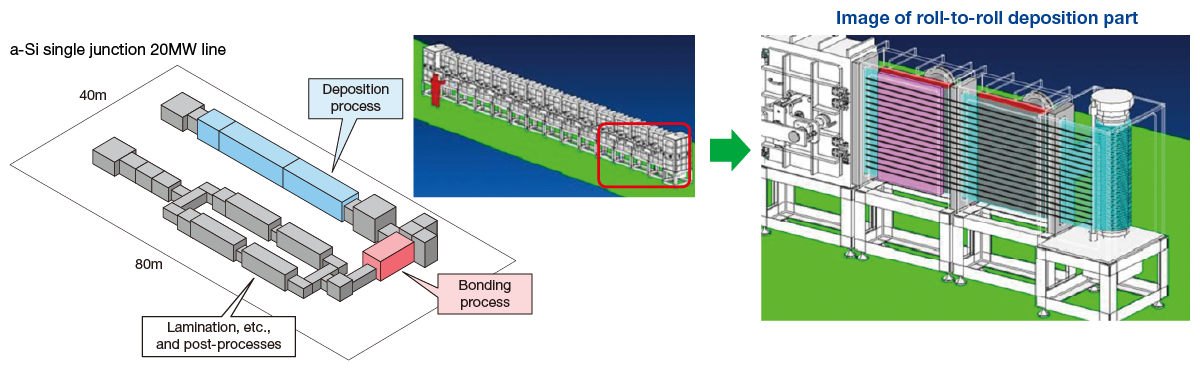

3. Overall plan of manufacturing line

Overall plan of manufacturing line
Fig. 1
