Slit -Die Coating

We bring you slit die coating technology highly recognized within the industry.

Coating Patterns Continuous

Coating Patterns Intermittent and Stripe

Coating Patterns Rear Side Intermittent and Stripe

Coating Patterns Intermittent and Stripe using 2 Types of Slurry

Multi-layer Coating Method 01

  • ■Thin Coating Method
  • Features
  • Achieves high-accuracy thin film coating using our slit die technologies with a special depressurization function.
  • ■Intermittent Coating Method
  • Features
  • Special valve control ensures high-accuracy pattern coating
  • Possible to adjust coating pattern length and coating thickness.
  • ■Simultaneous Double-sided Coating Method
  • Features
  • Achieves simultaneous double-sided coating using special slit dies
  • Process can be simplified by using simultaneous double-sided coating (Reduces initial investment and running costs)
  • ■Simultaneous Multi-Layer Coating Method
  • Features
  • Special one-slit die enables multi-layer formation.
  • Simultaneous coating ensures consistent layer formation.
  • Drastically simplifies process and reduces coating time.
  • Features
  • We manufacture high-accuracy slit dies at our own factory specializing in slit dies.
  • Our integrated system of design, manufacturing and testing allows us to provide unrivaled high-accuracy and high-quality slit dies.

Slit -Die Coating

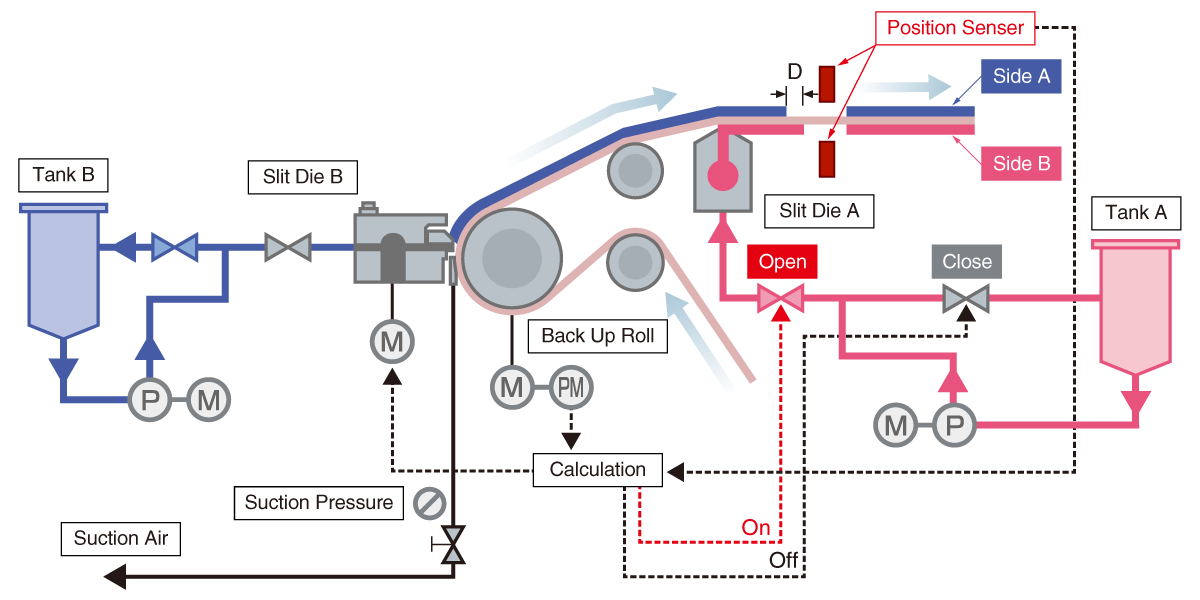

Coating System

Coating System

Coating System

Coating Patterns Continuous

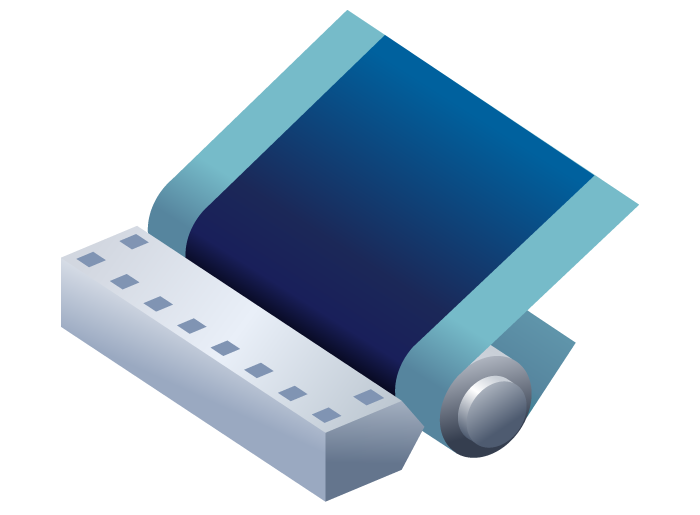

Continuous coating

Coating Patterns Intermittent

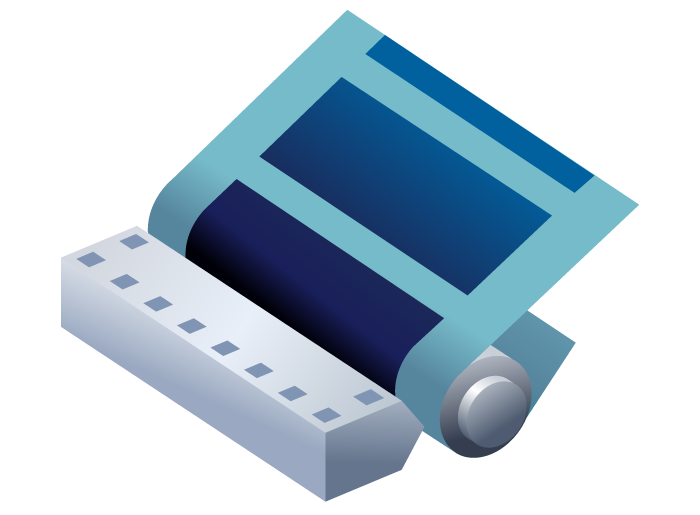

Intermittent coating

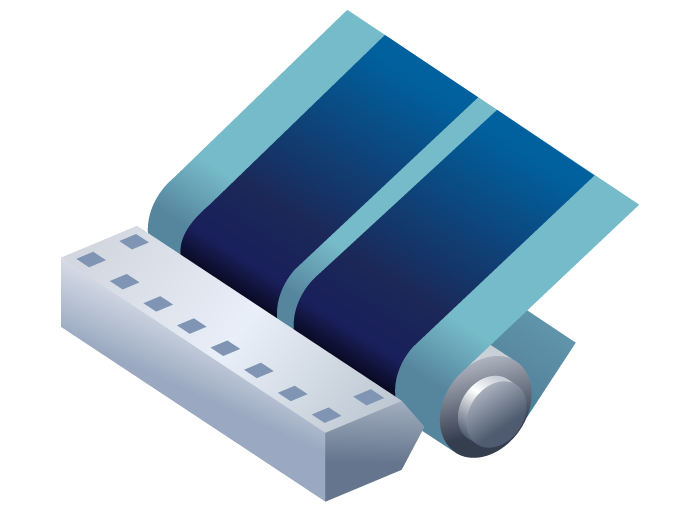

Coating Patterns Stripe

Stripe coating

Coating Patterns Intermittent and Stripe

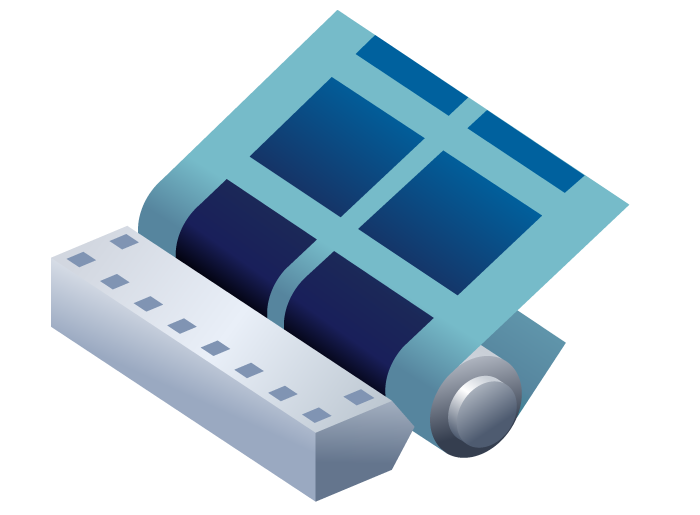

Intermittent and stripe coating

Simultaneous double-sided coating

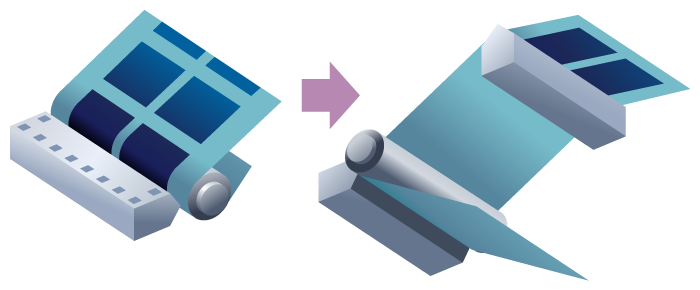

Simultaneous double-sided coating

Coating Patterns Intermittent and Stripe using 2 Types of Slurry

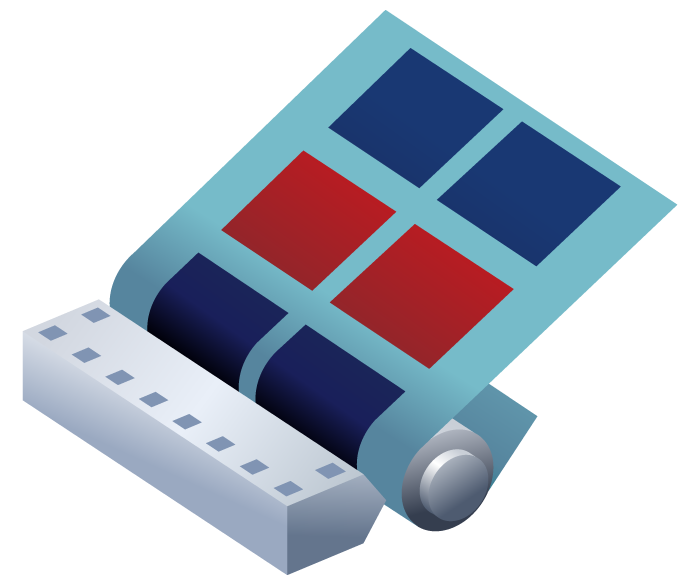

Intermittent and stripe coating using different types of slurry

Multi-layer Coating Method 01

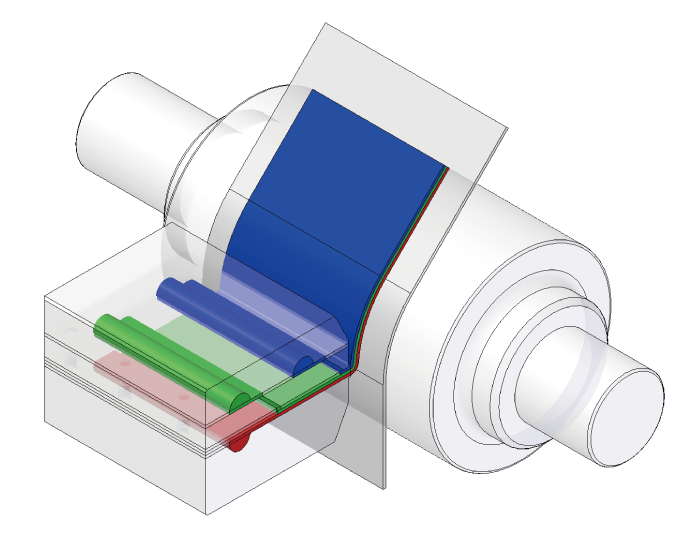

Simultaneous 3-Layer Coating Method

Multi-layer Coating Method 02

Cross-section of 3-layer coating

Slit Die Design & Manufacturing Adjustable Slit Die

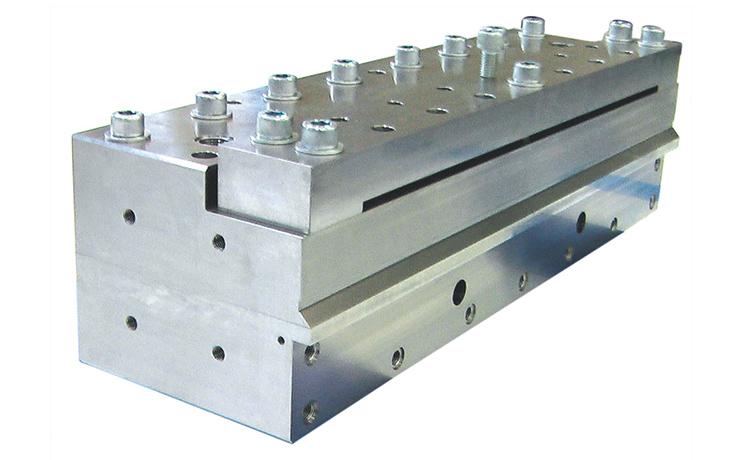

Adjustable Slit Die

Slit Die Design & Manufacturing Ultraprecision Surface Grinding

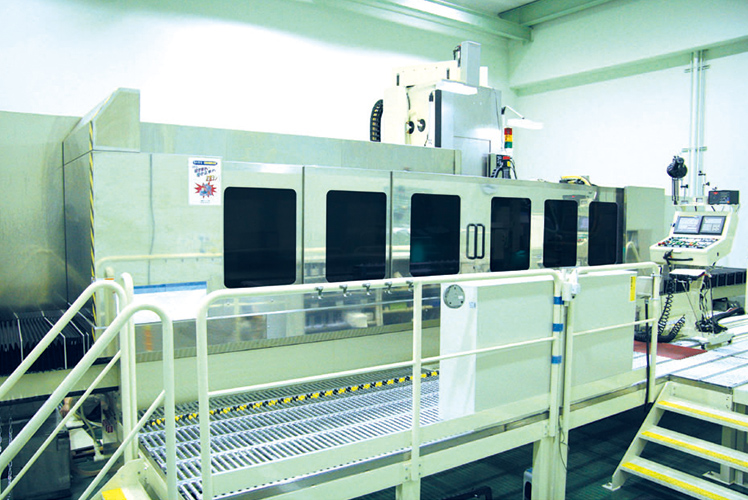

Ultraprecision Surface Grinding

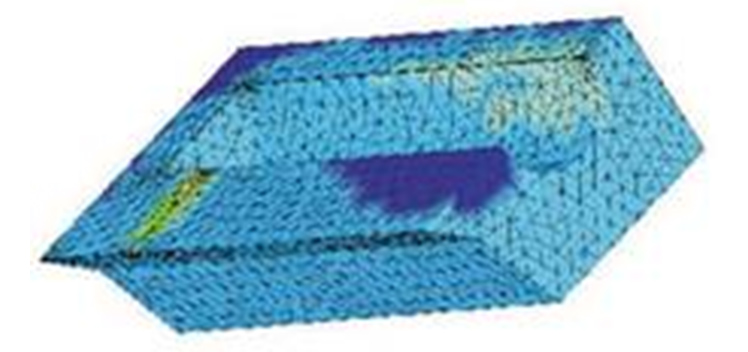

Slit Die Design & Manufacturing Die Structure Analysis

Die Structure Analysis
