Test Coating Machines

Able to carry out coating tests according to our customers’ materials and coating conditions

Multi-Unit Coating System

Compact Multi-layer Coating Machine

High-Speed Wide Coating Machine

We have test coating machines permanently installed at our Shiga plant.
Enables you to carry out coating tests using your own materials to find the optimal solution.

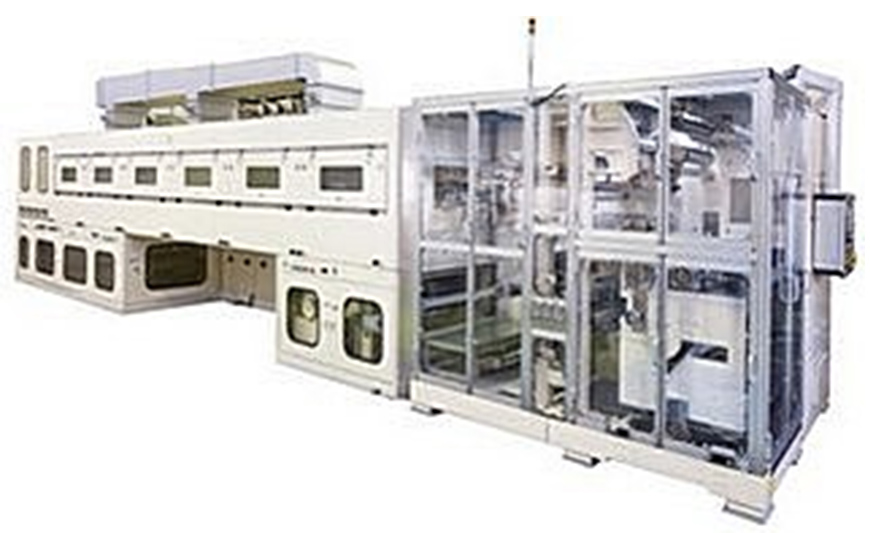

■Multi-Unit Coating System
Capable of various coating methods, such as hot-melt coating and simultaneous double-sided coating.
By using multi-unit for the coating portion, it is capable of coating methods other than slit-die coating, such as gravure coating.
Capable of handling various drying conditions, such as roll support and floating, by changing the drying nozzle.

Specification

Substrate width Max.450mm
Machine speed : Max.45m/min
Dryer : 2.5m x 3 zones (roll support, floating) * Can also use UV

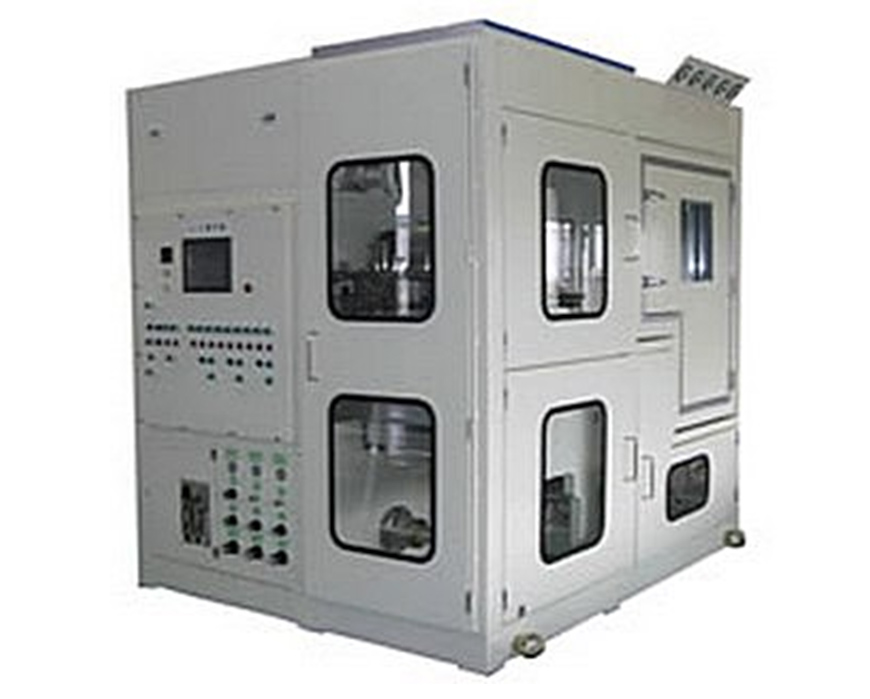

■Compact Multi-layer Coating Machine
You can carry out coating tests using small quantities of materials for research purposes, including simultaneous multi-layer coating, etc.

Specification

Substrate width : Max.300mm
Machine speed : Max.100m/min
Dryer : 1m×2 Zone (IR)

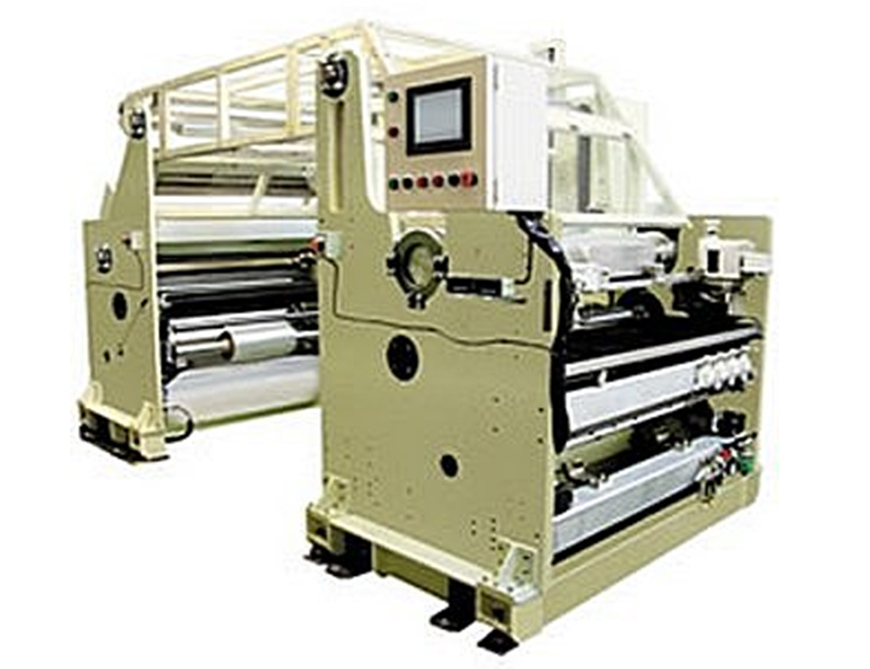

■High-Speed Wide Coating Machine

Specification

Substrate width Max.1,100mm
Machine speed Max.300m/min
