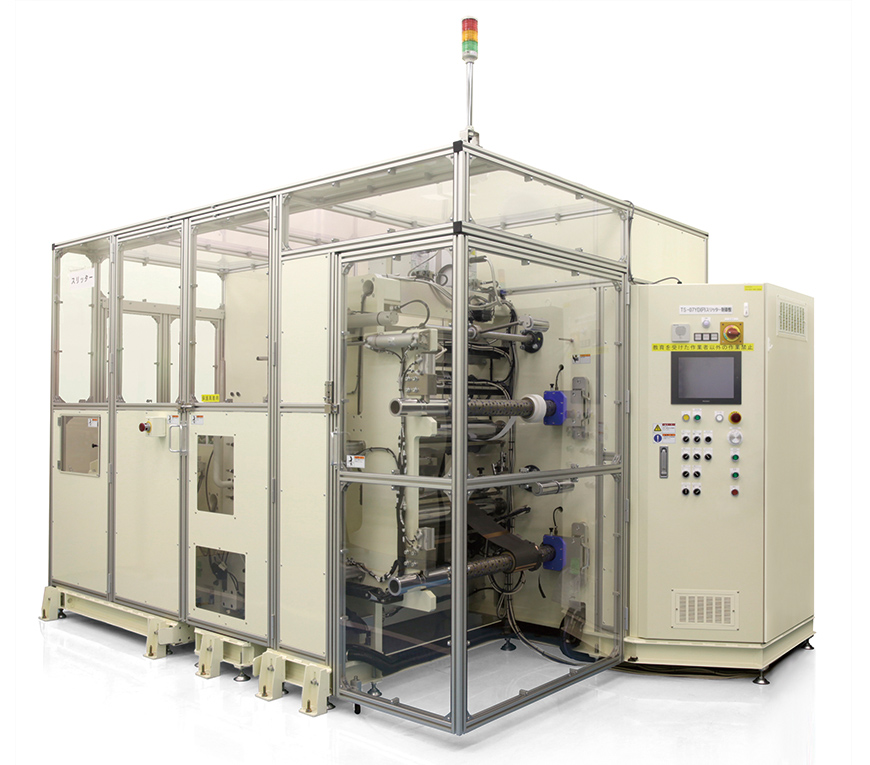

Test Slitting Machine

Test machine installed at our Shiga Plant

Test Slitting Machine

Gang cutting unit

Individual shear cutting unit

Enables optimal slit testing based on the customer's materials and conditions.

■Test Slitting Machine

Features

  • Ensures a high-quality wound product by using a horizontally moving friction shaft and special gang cutter.

Specification

Substrate width : Max.650mm
Machine speed : Max.100m/min

■Gang cutting unit

Features

  • A high-accuracy special gang cutting method enables burr-free, high-quality slitting of metal foils. It is also ideal for slitting thick films.

■Individual shear cutting unit

Features

  • Conditions such as contact pressure, toe-in angle, and overlap amount can be adjusted and numerically controlled to suit the substrate.

Individual shear cutting unit
